morse

JLed morse example

This examples demonstrates an efficient method to generate morse code on an micro controller like the Arduino.

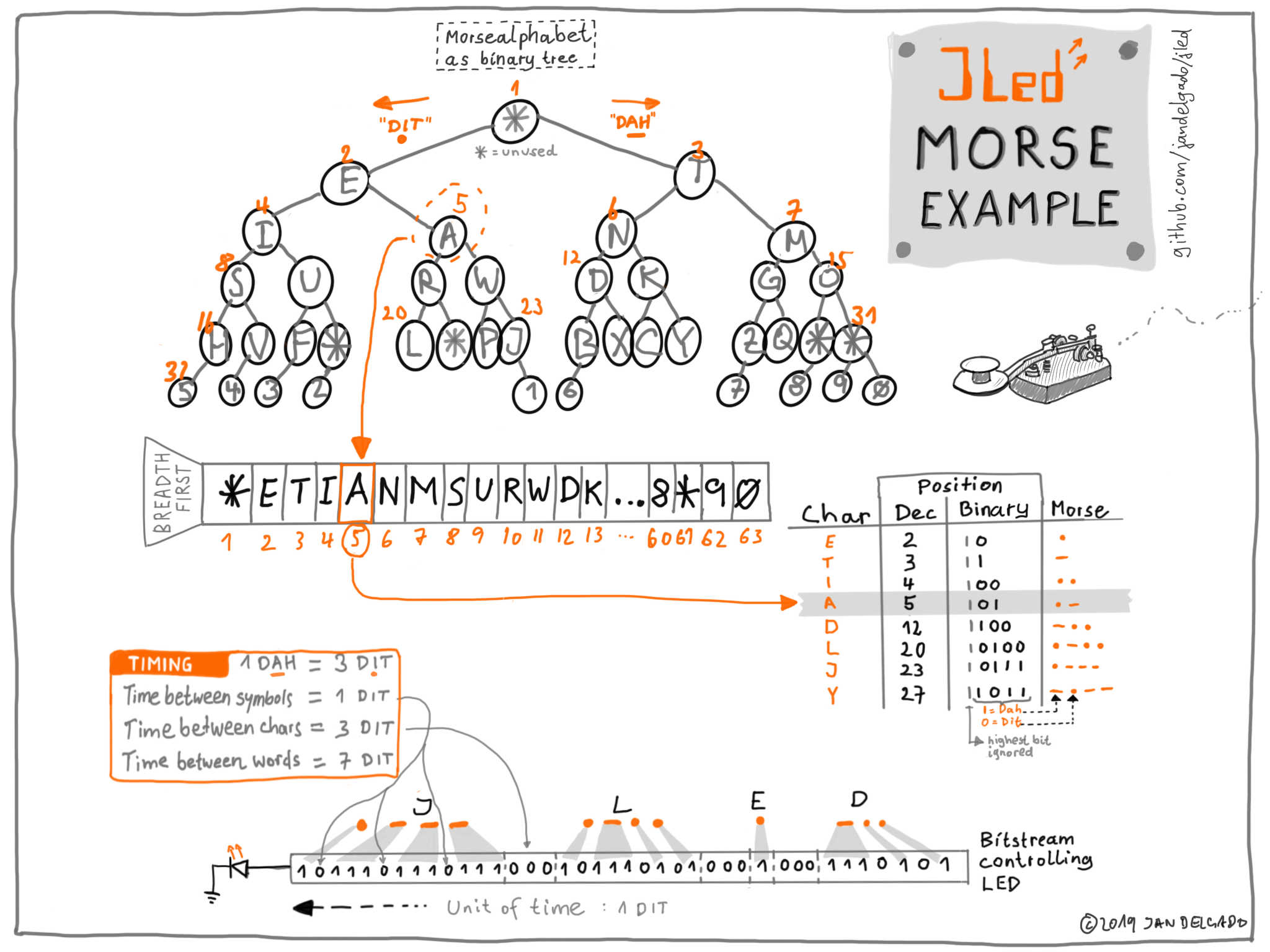

The morse example uses the morse alphabet encoded in a binary tree to generate morse code using a JLed user defined brightness class. The text to be morsed is transformed into morse code and then transformed into a sequence of 1 and 0 which are written out to a GPIO controlling a LED or a sound generator.

morse example

Author

Jan Delgado

Files

morse.ino
// Copyright (c) 2019 Jan Delgado <jdelgado[at]gmx.net>
// JLed user defined brightness morse example
// https://github.com/jandelgado/jled
#include "morse_effect.h"  // NOLINT
#include <Arduino.h>
#include <jled.h>

MorseEffect morseEffect("HELLO JLED");
auto morseLed =
    JLed(LED_BUILTIN).UserFunc(&morseEffect).DelayAfter(2000).Forever();

void setup() {}

void loop() { morseLed.Update(); }
bitset.h
// Copyright (c) 2019 Jan Delgado <jdelgado[at]gmx.net>
// https://github.com/jandelgado/jled

#ifndef EXAMPLES_MORSE_BITSET_H_
#define EXAMPLES_MORSE_BITSET_H_

// a simple bit set with capacity of N bits, just enough for the morse demo
class Bitset {
 private:
    size_t n_;
    uint8_t* bits_;

 protected:
    // returns num bytes needed to store n bits.
    static constexpr size_t num_bytes(size_t n) {
        return n > 0 ? ((n - 1) >> 3) + 1 : 0;
    }

 public:
    Bitset() : Bitset(0) {}

    Bitset(const Bitset& b) : Bitset() { *this = b; }

    explicit Bitset(size_t n) : n_(n), bits_{new uint8_t[num_bytes(n)]} {
        memset(bits_, 0, num_bytes(n_));
    }

    Bitset& operator=(const Bitset& b) {
        if (&b == this) return *this;
        const auto size_new = num_bytes(b.n_);
        if (num_bytes(n_) != size_new) {
            delete[] bits_;
            bits_ = new uint8_t[size_new];
            n_ = b.n_;
        }
        memcpy(bits_, b.bits_, size_new);
        return *this;
    }

    virtual ~Bitset() {
        delete[] bits_;
        bits_ = nullptr;
    }
    void set(size_t i, bool val) {
        if (val)
            bits_[i >> 3] |= (1 << (i & 7));
        else
            bits_[i >> 3] &= ~(1 << (i & 7));
    }
    bool test(size_t i) const { return (bits_[i >> 3] & (1 << (i & 7))) != 0; }
    size_t size() const { return n_; }
};
#endif  // EXAMPLES_MORSE_BITSET_H_
morse.h
// Copyright (c) 2019 Jan Delgado <jdelgado[at]gmx.net>
// https://github.com/jandelgado/jled
#include <Arduino.h>
#include <inttypes.h>
#include <stddef.h>
#include "bitset.h"  // NOLINT

#ifndef EXAMPLES_MORSE_MORSE_H_
#define EXAMPLES_MORSE_MORSE_H_

// The Morse class converts a text sequence into a bit sequence representing
// a morse code sequence.
class Morse {
    // pre-ordered tree of morse codes. Bit 1 = 'dah',  0 = 'dit'.
    // Position in string corresponds to position in binary tree starting w/ 1
    // see https://www.pocketmagic.net/morse-encoder/ for info on encoding
    static constexpr auto LATIN =
        "*ETIANMSURWDKGOHVF*L*PJBXCYZQ**54*3***2*******16*******7***8*90";

    static constexpr auto DURATION_DIT = 1;
    static constexpr auto DURATION_DAH = 3 * DURATION_DIT;
    static constexpr auto DURATION_PAUSE_CHAR = DURATION_DAH;
    static constexpr auto DURATION_PAUSE_WORD = 7 * DURATION_DIT;

 protected:
    char upper(char c) const { return c >= 'a' && c <= 'z' ? c - 32 : c; }
    bool isspace(char c) const { return c == ' '; }

    // returns position of char in morse tree. Count starts with 1, i.e.
    // E=2, T=3, etc.
    size_t treepos(char c) const {
        auto i = 1u;
        while (LATIN[i++] != c) {
        }
        return i;
    }

    // returns uint16_t with size of morse sequence (dit's and dah's) in MSB
    // and the morse sequence in the LSB
    uint16_t pos_to_morse_code(int code) const {
        uint8_t res = 0;
        uint8_t size = 0;
        while (code > 1) {
            size++;
            res <<= 1;
            res |= (code & 1);
            code >>= 1;
        }
        return res | (size << 8);
    }

    template <typename F>
    uint16_t iterate_sequence(const char* p, F f) const {
        // call f(count,val) num times, incrementing count each time
        // and returning num afterwards.
        auto set = [](int num, int count, bool val, F f) -> int {
            for (auto i = 0; i < num; i++) f(count + i, val);
            return num;
        };

        auto bitcount = 0;
        while (*p) {
            const auto c = upper(*p++);
            if (isspace(c)) {  // space not part of alphabet, treat separately
                bitcount += set(DURATION_PAUSE_WORD, bitcount, false, f);
                continue;
            }

            const auto morse_code = pos_to_morse_code(treepos(upper(c)));
            auto code = morse_code & 0xff;  // dits (0) and dahs (1)
            auto size = morse_code >> 8;    // number of dits and dahs in code
            while (size--) {
                bitcount += set((code & 1) ? DURATION_DAH : DURATION_DIT,
                                bitcount, true, f);

                // pause between symbols := 1 dit
                if (size) {
                    bitcount += set(DURATION_DIT, bitcount, false, f);
                }
                code >>= 1;
            }

            if (*p && !isspace(*p)) {
                bitcount += set(DURATION_PAUSE_CHAR, bitcount, false, f);
            }
        }
        return bitcount;
    }

 public:
    // returns ith bit of morse sequence
    bool test(uint16_t i) const { return bits_->test(i); }

    // length of complete morse sequence in in bits
    size_t size() const { return bits_->size(); }

    Morse() : bits_(new Bitset(0)) {}

    explicit Morse(const char* s) {
        const auto length = iterate_sequence(s, [](int, bool) -> void {});
        auto bits = new Bitset(length);
        iterate_sequence(s, [bits](int i, bool v) -> void { bits->set(i, v); });
        bits_ = bits;
    }

    ~Morse() { delete bits_; }

    // make sure that the following, currently not needed, methods are not used
    Morse(const Morse&m) {*this = m;}
    Morse& operator=(const Morse&m) {
        delete bits_;
        bits_ = new Bitset(*m.bits_);
        return *this;
    }

 private:
    // stores morse bit sequence
    const Bitset* bits_ = nullptr;
};

#endif  // EXAMPLES_MORSE_MORSE_H_
morse_effect.h
// Copyright (c) 2019 Jan Delgado <jdelgado[at]gmx.net>
// https://github.com/jandelgado/jled
#ifndef EXAMPLES_MORSE_MORSE_EFFECT_H_
#define EXAMPLES_MORSE_MORSE_EFFECT_H_

#include <jled.h>
#include "morse.h"  // NOLINT

class MorseEffect : public jled::BrightnessEvaluator {
    Morse morse_;
    // duration of a single 'dit' in ms
    const uint16_t speed_;

 public:
    explicit MorseEffect(const char* message, uint16_t speed = 200)
        : morse_(message), speed_(speed) {}

    uint8_t Eval(uint32_t t) const override {
        const auto pos = t / speed_;
        if (pos >= morse_.size()) return 0;
        return morse_.test(pos) ? 255 : 0;
    }

    uint16_t Period() const override { return (morse_.size() + 1) * speed_; }
};

#endif  // EXAMPLES_MORSE_MORSE_EFFECT_H_
